EMI Printing Metal Dome Array

EMI Printing Metal Dome Array, the difference of custom metal dome array is that there is a sliver paste is printed on the top layer as ESD (electrostatic Discharge Control). It can help to reduce the electrostatic which maybe hamful to the other parts inside of the mobile phone, and to protect the product.

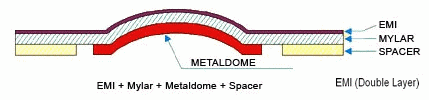

There are two “contact eyes” to let me electrostatic run way. The contact resistance can reduce to less than three ohms. You can see the structure of this item as below:

EMI Dome Array

If you have the inquiry of our EMI Printing Metal Dome Array, please contact us anytime, we are glad to be at your service.

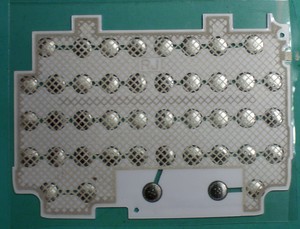

EMI Printing Dome Array

Dome Array Specifications:

1.Structure: Double Layers

2.Material: LGF Film + Mylar + Adhesive + Spacer + Adhesive + metal dome

3.Color:  Mylar: transparent; Spacer: white or transparent

4.Thikness: Mylar: 0.05mm; Spacer: 0.075mm

5.Available Domes: c-series, F-series, T-series

6.Operating & Storage Temprature: 5-125℃
