Standard One Key Metal Dome Array

Our “Standard One Key Metal Dome Array” is the same as the “Standard Peel-N-Place Sheet” of Snaptron. “Standard One Key Metal Dome Array” is that the individual domes(single domes) are attached to a square PET adhesive tape.

You can peel off the metal domes(snap domes) one by one and stick it firmly on your PCB, FPC and membrane switches. You can choice many of our C-series, F-series, T-series snap domes in the Standard One Key Metal Dome Array type.

The size of the sheet is determined by the metal dome you will use, normally it will be 20-30 pcs per sheet. The material you can choice the transparent or white.

If you have the inquiry of the standard one key metal dome array, please contact us anytime, we are glad to be at your service.

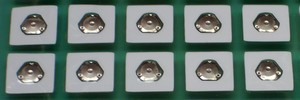

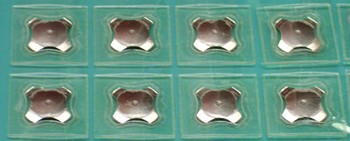

Standard One Key Metal Dome Array(white)Standard One Key Metal Dome Array(transparent)











Dome Array Specifications:

1.Structure: Double Layers

2.Material: Mylar + Adhesive + Spacer + Adhesive + metal dome

3.Color:  Mylar: transparent; Spacer: white or transparent

4.Thikness: Mylar: 0.05mm; Spacer: 0.075mm

5..Available Domes: c-series, F-series, T-series

6.Operating & Storage Temprature: 5-125℃
